FT-P Series

[PRODUCT OUTLINE] An immersion-type UV lamp is mounted inside the water tank of a humidifier. To be built into air-conditioning units or in ducts. Highly efficient and energy saving as it turns a large volume water into fine mist, consuming little electricity. The mist then quickly evaporates and is absorbed into the air. It is suitable particularly for humidifying offices that are filled with office automation equipment, for factories that generate much heat, or for space that has much heat. The series has 12 models of varying humidification capacity and it can be controlled either by On/Off switch or by proportional control system. [FEATURES] - Low running cost - Quick response with humidification - High safety factor as this series uses no heating for humidification - When not operating, it drains automatically (SV type) [APPLICATIONS] - Incorporation into packaged air-conditionings or air-handling units - Use in offices or factories that generate sensible heat

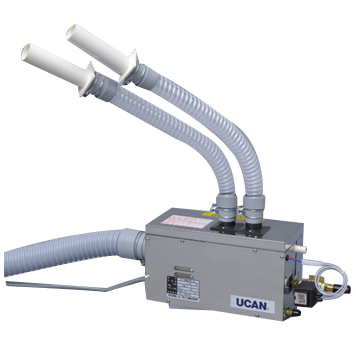

FT-N Series [PRODUCT OUTLINE] An immersion-type UV lamp is mounted inside the water tank of a humidifier. A compact-sized ultrasonic humidifier that has been designed for easy installation into all sorts of equipment anywhere that require humidity control such as in a pre-fabricated cold storage chamber from 10㎥ to 30㎥. With use of various kinds of brackets (optional) designed to facilitate the installation, this humidifier model can be installed either inside the host equipment or outside. In the latter case, the interior is humidified through nozzles. Since not only the main unit housing but even the casing of the built-in fan is made of stainless steel, it is rust-free and durable. The FT-N’s has a mechanism to drain externally any condensation that may accumulate around the fan as it sucks in misty air that contains water droplets. This precludes any effect on the electrical part. It can be controlled either by On/Off switch or by proportional control system. [FEATURES] - Equipped with draining system making this model optimum for use through a partition in high humidity - When not operating, it drains automatically (SV type) - Sturdily built and free of corrosion, being completely made of stainless steel - Many option parts are available. For example, air filter, mounting brackets, drain pan and nozzle brackets - Use of a duct hose to pinpoint the direction of spraying of mist toward where it is required [APPLICATIONS] - Refrigerated storages of fruits and vegetables - Wine cellars - Refrigerated storages of grains - Food processing machineries such as fermentation of bread doughs - Mushroom cultures - Storages of cut flowers - Display cases for fruits, vegetables and fresh fishes - Small-sized air-conditioning units - Environmental testing equipments
